With currently people increasing demand for comfort of environment, air conditioning comfort has higher requests. The air conditioner can delivery two kinds of air which are hot and cold , but their physical theory is extremely contrary (with themselves different density, cold air is heavy and falls down automatically , hot air is light and rises automatically). How can we not only achieve the comfort requirements but also reasonable use energy ,meanwhile , to prevent additional labour and material resources from wasting? The Temperature Sensor Automatical Diffuser can solve the problem.
Based on the characteristics and the theory of two kinds of air flow, when install our products in top-feeding way, it horizontal blows cold air will be sink automatically , achieve the optimal effect meanwhile, will not make people under the diffuser feels too cold. As it perpendicular blows hot air will be rapidly down and cover all of the working area, meanwhile ,the People under the diffuser will not feels too hot also, With the hot air rises, it can makes the temperature of whole working area increase sharply, then the problem of comfort and energy consumption will be perfect solve thoroughly in that way. When install our products in side-feeding way, The cold air will be blows out horizontally or obliquely up, and the hot air will be blows out obliquely down with the reasonable speed, ensure of thoroughly mix with the indoor air as well. Besides, the distance of air supply and the energy transfer could be guarantee, completely solve the effect problem which other brand products can not. On the other hand, the special narrow frame and seamless splicing technology also meet the decoration requirements (please refer to the samples as below). Since its air supply way is in vortex delivery mode, so its diffusion performance is more better. For installation, we reconsidered the connection method of the air duct, improved ,corrected and made mended those other brands ignored . We have combined the characteristics of similar products from many international enterprises, our products has many advantages, such as operation simply and easy, small wind resistance, arc shape of diversion blades and so on.
◆line type diffuser With vortex theory to control airflow
◆ no electric driving, saving energy and no wiring need
◆With strong induction lead to airflow thoroughly mix, rapidly eliminate the temperature difference between air supply and indoor
◆The segmentation part adopts unique connection method, and the ultra long size also has a sense of integration.
型号说明:

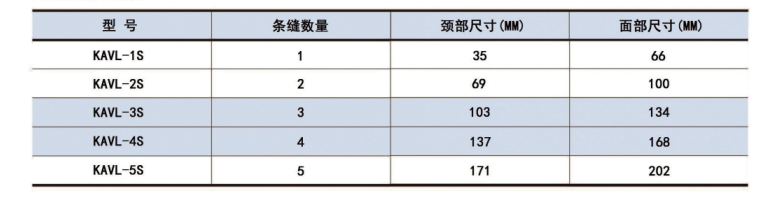

外形尺寸与规格:

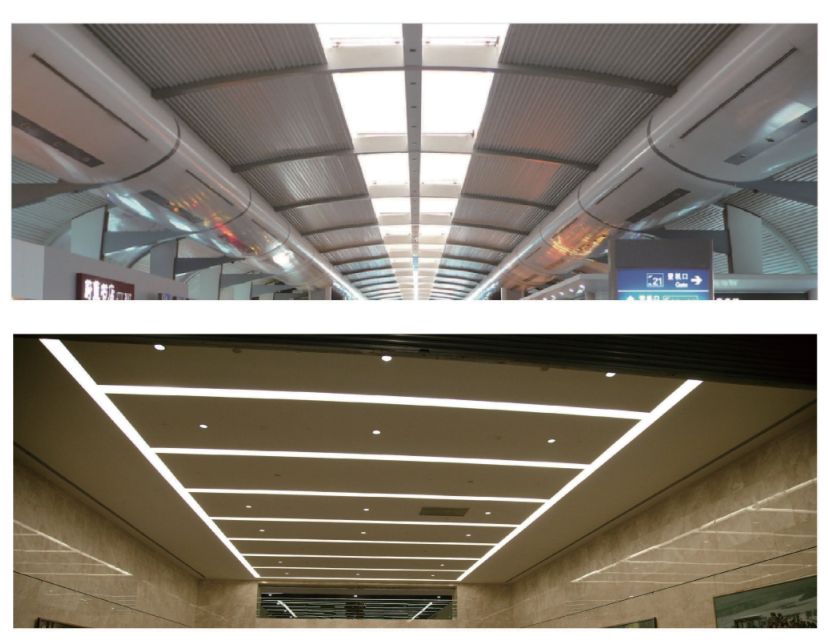

安装效果图:
性能参数表:
(1)到达距离是指风口到风速0.5M/SEC的距离
(2)型式栏的数据,是表示有效尺寸每1000L的吹出有效面积
(3)由于风口的长短、吹出温差而使到达距离需要补正
(4)由于风口的长度而发生的噪音,请按以下方法来补正。
上表是长度1000L的数据,其他长度可由以下方法算出。
例:KAVL-2型(长度2m) 风量:1400CMH
静压损失/到达距离/发生噪音
1400/2=70CM与性能表中702CMH接近的各组数据如下:
静压损失:水平吹出时[H]…53(Pa) 垂直吹出时[v]…40(Pa)
到达距离:水平吹出时[H]…7.7(m) 垂直吹出时[V]…7.6(m)
发生噪音:水平吹出时[H]…42(dB(A)) 垂直吹出时[v]…41(dB(A))
到达距离/发生噪音等数据需要根据下表数据补正。

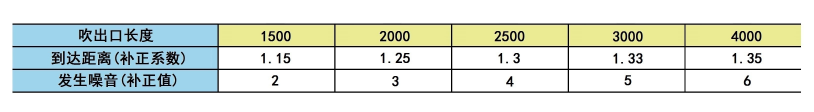

到达距离/发生噪音数值补正
到达距离为下表中的7.7×1.25=9.625m(水平吹出时);7.6×1.25=9.50m(垂直吹出时)
发生噪音为下表中的42+3=45dB(A)(水平吹出时);41+3=44dB(A)(垂直吹出时)
